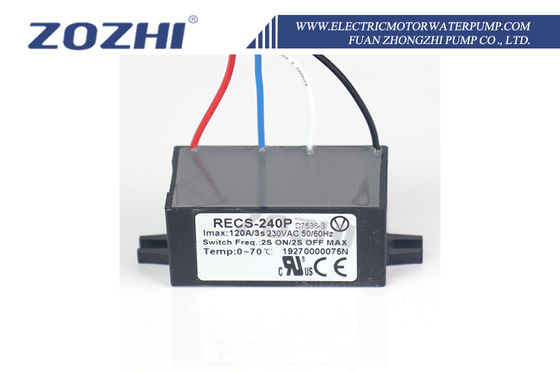

RECS-240P 230V Electronic Centrifugal Switch Motor Accessory with 120A/3s Max Current and 2S ON/2S OFF MAX Frequency
무료 샘플 및 쿠폰을 원하시면 저에게 연락하십시오.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
우려 사항이 있는 경우 24시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 온도 | 0-70C | 인증 | CE |
|---|---|---|---|
| 최대 전류 | 120A/3S | 스위치 프리 Q | 최대 2s/2s |
| 전압 | 230V | ||
| 강조하다 | 230V Electronic Centrifugal Switch,120A/3s Motor Accessory,2S ON/2S OFF MAX ECS |
||
제품 설명
RECS-240P 230V Electronic Centrifugal Switch Motor Accessory
Epoxy resin sealed construction with automatic capacitor discharge for enhanced reliability and performance in fans and blowers.
Product Overview
The RECS-140P Electronic Centrifugal Switch is a solid-state replacement designed to eliminate common mechanical switch failures in single-phase AC motors. It overcomes issues like tolerance build-up, mechanical fatigue, vibration, and electrical sparking by monitoring speed, voltage/current, and phase for precise switching operations.
Key Features
- Compact design with small package size
- Exceptional durability with 1 million cycle lifespan
- Universal compatibility with auto-matching for different motors
- Wide voltage range: 115V (90V-137V) or 230V (198V-264V)
- 50Hz/60Hz operation capability
- Silent operation with no switching noise or contact trembling
- High compatibility with both general-purpose and application-specific motors
- Simple installation and maintenance, fits standard motor frames
- Epoxy resin or silicone rubber sealed construction resists dirt, dust, moisture, and vibration
- Automatic starting capacitor discharge
- Certified to ROHS, CE, and UL standards
Technical Specifications
| Parameter | Value | Unit | Package (mm) |
|---|---|---|---|
| Rated Voltage | 115V/230V | V AC | |
| Max. Start Peak current (20ms, TC=25℃) | 100A (RECS-105/205) 200A (RECS-120/220) 400A (RECS-140/240) 600A (RECS-160/260) |
A | P: 72L*31W*23H P: 72L*31W*23H S: 52L*50W*24H P: 72L*31W*23H C: CAP Case 46Dia*86L |
| Max. Start Peak current (3.0S, TC=25℃) | 30A (RECS-105/205) 60A (RECS-120/220) 120A (RECS-140/240) 180A (RECS-160/260) |
A | |
| Initial switch-on delay time | 80 | mS | |
| Restart delay time (TC=25℃) | 5 | S | |
| ON/OFF Frequency | 0.2 | Cycle/S | |
| Ambient air temperature | 0-70 | ℃ | |
| Dielectric strength (between case and lines) | ≥2500 | V DC |
Model Specifications
| Model Type | Volt Range | Max peak current | Imax(3s) | Power Range |
|---|---|---|---|---|
| RECS-205P | 160-264VAC | 30A | Ima≤15A | 0-550W |
| RECS-220P | 160-264VAC | 60A | Ima≤35A | 600-2200W |
| RECS-240P | 160-264VAC | 120A | Ima≤75A | 2200-4300W |
| RECS-105P | 85-132VAC | 30A | Ima≤15A | 0-330W |
| RECS-120P | 85-132VAC | 60A | Ima≤35A | 300-1100W |
| RECS-140P | 85-132VAC | 120A | Ima≤75A | 1100-2200W |
| RECS-020T | 85-264VAC | 60A | Ima≤35A | 110V 300-1100W 220V 600-2200W |
