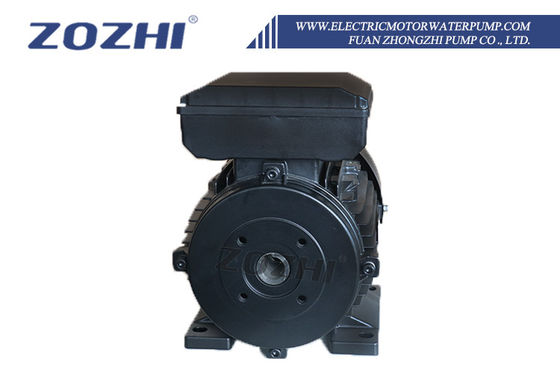

ZOZHI 2.2kw 3hp Single Phase 380v Electric Motor 100L1-4 Hollow Shaft Asynchronous Induction Motor Waterproof Features

  • ZOZHI 2.2kw 3hp Single Phase 380v Electric Motor 100L1-4 Hollow Shaft Asynchronous Induction Motor Waterproof Features
원래 장소 중국
브랜드 이름 ZOZHI
인증 CE,CCC,ISO9001
모델 번호 HSL100L1-4
최소 주문 수량 2개 부분
가격 USD133piece
포장 세부 사항 CTNS/베니어 케이스
배달 시간 14 일
지불 조건 t/t, l/c
공급 능력 30일당 10000개
제품 상세 정보
강조하다

3hp single phase electric motor

,

380v hollow shaft motor

,

waterproof asynchronous induction motor
메시지를 남겨주세요
제품 설명
ZOZHI 2.2kw 3hp Single Phase 380v Electric Motor 100L1-4 Hollow Shaft Asynchronous Induction Motor Waterproof Features
Product Description

High Efficiency 5.5HP 4KW Single Phase 1400RPM AC Electric Induction Motor Low Noise 380V 60HZ Enclosed 220V Aluminium

ZOZHI 2.2kw 3hp Single Phase 380v Electric Motor 100L1-4 Hollow Shaft Asynchronous Induction Motor Waterproof Features 0
ZOZHI 2.2kw 3hp Single Phase 380v Electric Motor 100L1-4 Hollow Shaft Asynchronous Induction Motor Waterproof Features 1
ZOZHI 2.2kw 3hp Single Phase 380v Electric Motor 100L1-4 Hollow Shaft Asynchronous Induction Motor Waterproof Features 2
ZOZHI 2.2kw 3hp Single Phase 380v Electric Motor 100L1-4 Hollow Shaft Asynchronous Induction Motor Waterproof Features 3
ZOZHI 2.2kw 3hp Single Phase 380v Electric Motor 100L1-4 Hollow Shaft Asynchronous Induction Motor Waterproof Features 4
ZOZHI 2.2kw 3hp Single Phase 380v Electric Motor 100L1-4 Hollow Shaft Asynchronous Induction Motor Waterproof Features 5
ZOZHI 2.2kw 3hp Single Phase 380v Electric Motor 100L1-4 Hollow Shaft Asynchronous Induction Motor Waterproof Features 6
ZOZHI 2.2kw 3hp Single Phase 380v Electric Motor 100L1-4 Hollow Shaft Asynchronous Induction Motor Waterproof Features 7
ZOZHI 2.2kw 3hp Single Phase 380v Electric Motor 100L1-4 Hollow Shaft Asynchronous Induction Motor Waterproof Features 8
ZOZHI 2.2kw 3hp Single Phase 380v Electric Motor 100L1-4 Hollow Shaft Asynchronous Induction Motor Waterproof Features 9
Specifications
Brand Name ZOZHI
Type Asynchronous Motor
Phase Single phase
Frequency 50hz/60hz
Efficiency IE 1
Protection class IP55
Certification CE/ISO9001
Housing Aluminium
Insulation Class ClassF
Duty S1 (continuous)
Motor Bearing C&U
Flange Size 87/61mm
Overall Dimension
ZOZHI 2.2kw 3hp Single Phase 380v Electric Motor 100L1-4 Hollow Shaft Asynchronous Induction Motor Waterproof Features 10 ZOZHI 2.2kw 3hp Single Phase 380v Electric Motor 100L1-4 Hollow Shaft Asynchronous Induction Motor Waterproof Features 11
Frame Size Specifications
Frame Size Flange Frame M N S A AC B H HC L K
90L 75/87 90/61 7 140 238 125 90 220 270 9.5
100L 75/87 90/61 9 160 255 140 100 240 315 11
112M 75/87 90/61 9 216 326 140 132 265 330 11
132S 75/87 90/61 9 216 326 140 132 320 370 12
132M 75/87 90/61 9 216 326 178 132 320 409 12
160M 75/87 90/61 9 254 360 210 160 410 498 14.5
Technical Specifications
Single Phase 50Hz/2-pole
极速赛车开奖直播
Frame Size Power (HP/KW) Speed (RPM) Power Factor (P.F.) Efficiency (%) Capacitor (μF) Voltage (V) Ampere (A)
HSL90L1-2 2.5HP/1.8KW 2850 0.95 65 50 230 12.7
HSL90L2-2 3HP/2.2KW 2840 0.99 72 60 400 13.4
HSL100L2 3HP/2.2KW 2850 0.96 74 85 40015.3
